Jeep Wrangle JK/JKU Sun Shade
LED Integrated Tail Light Option
LED

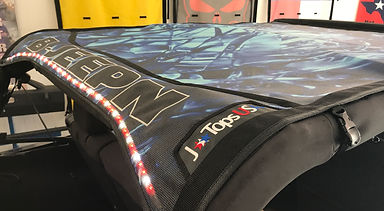

"Safari"Style 3/4 Length Shade Top With LED Shown
Add the LED Option to any JK top in our store.
Includes tail light wiring harness , simple plug and play.
JTopsUSA Unique Jeep Shade Top Designs Featuring our Exclusive Integrated LED - Brake, Turn and Backup Light Option. Available as an option on all our JK tops.
LED Shade Top Wiring Installation Overview.
This requires the installation (10 minutes) of the included trailer wiring harness to the drivers side tail light.

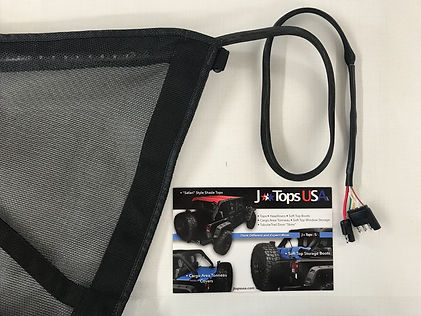

New Design has Nylon Covering rather than plastic or bare wires
Install shade top as normal and locate the LED pigtail coming out of the left rear corner of the top.
Unzip the roll cage cover and feed the pigtail through to the bottom of the roll cage bar.
Re-zip the roll cage cover and plug into the trail wiring coming from the tail light (See That Install Below)
Once plugged just tuck the wiring under the plastic cowling for a clean install.
CLICK IMAGE FOR DOWNLOADABLE PDF
This really is an easy installation. Just remove tail light, plug in adaptor, fish it up through the access port. Replace tail light and plug the adaptor end into the pigtail coming from the LED shade top.
